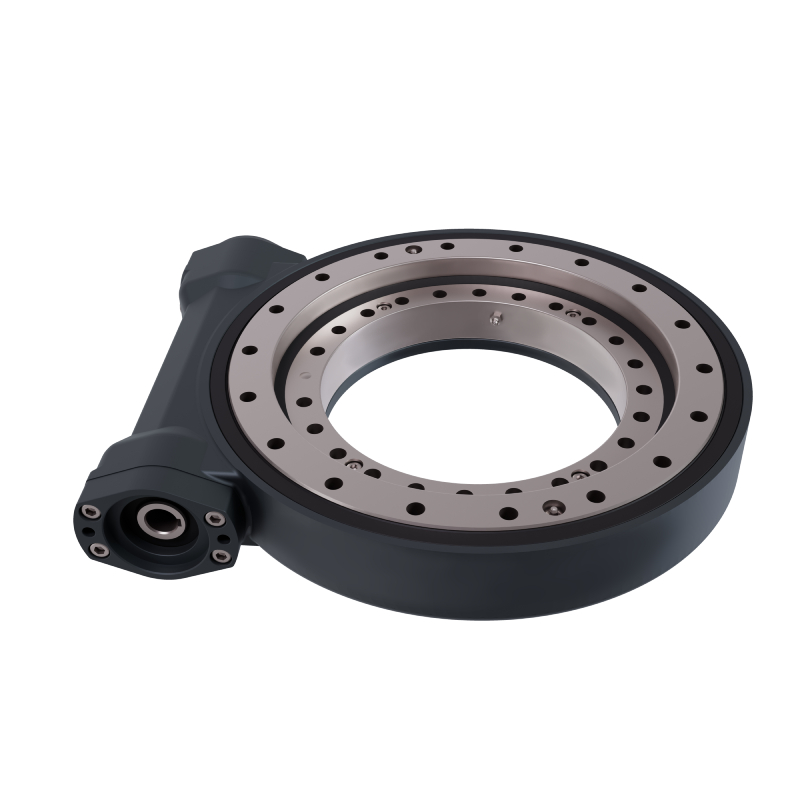

TD-E Standard Slew Drive

The Tecma Drive TDE-type slewing module is designed for applications requiring precise, compact movements with high holding torque. It features symmetrical motor input at both ends of the worm gear, allowing for greater mounting flexibility and improved load distribution. Its robust structure combines a spur or helical gear ring with a directly coupled geared motor. Additional lubrication points facilitate preventative maintenance and extend the assembly’s service life.

The housing is protected with a cataphoresis coating, ensuring excellent corrosion resistance under demanding conditions. The slewing rings are treated using a QPQ process, providing high surface hardness and wear resistance. Ideal for solar trackers, specialized machinery, lifting platforms, and automation systems.

• High output torque in a compact package
• Symmetrical motor entry (both sides of the worm gear)
• IP65 watertight enclosure (optional up to IP66)
• Cataphoresis coating on the housing
• QPQ coating on the guide rings
• Additional lubrication points for easier maintenance
• Option for position sensors and custom motors
